ER High precision clip

Category:

General milling of high hard materials

Product accuracy:

≤0.008mm

Product material:

65Mn spring steel

Product technology:

High precision grinding

Product application:

CNC/ Engraving machine

Product characteristics:

High hardness holding power and high precision

Specification:

ERG16/ERG20/ERG25/ERG32/ERG40

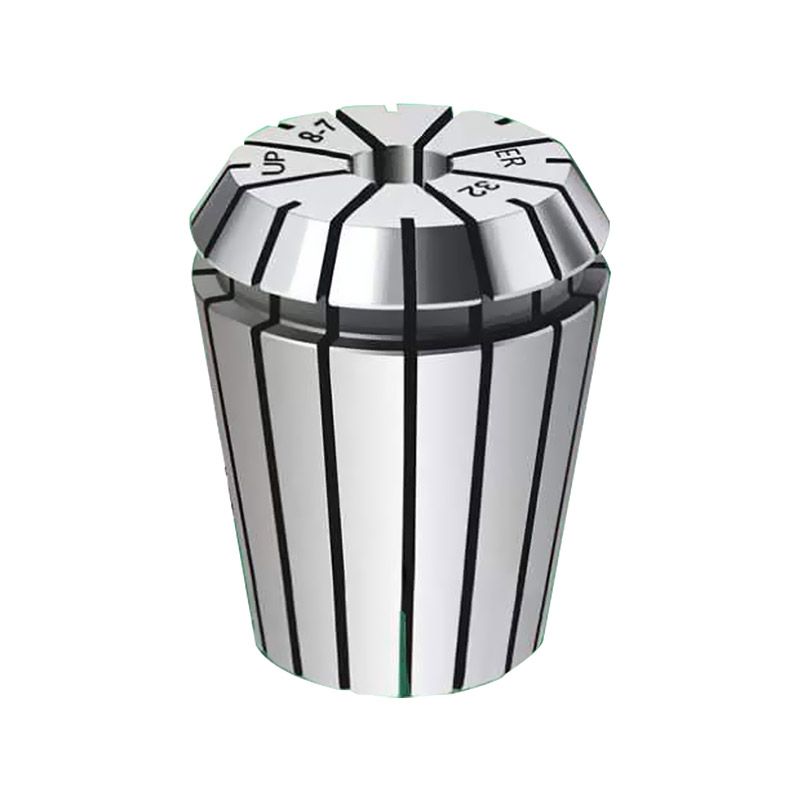

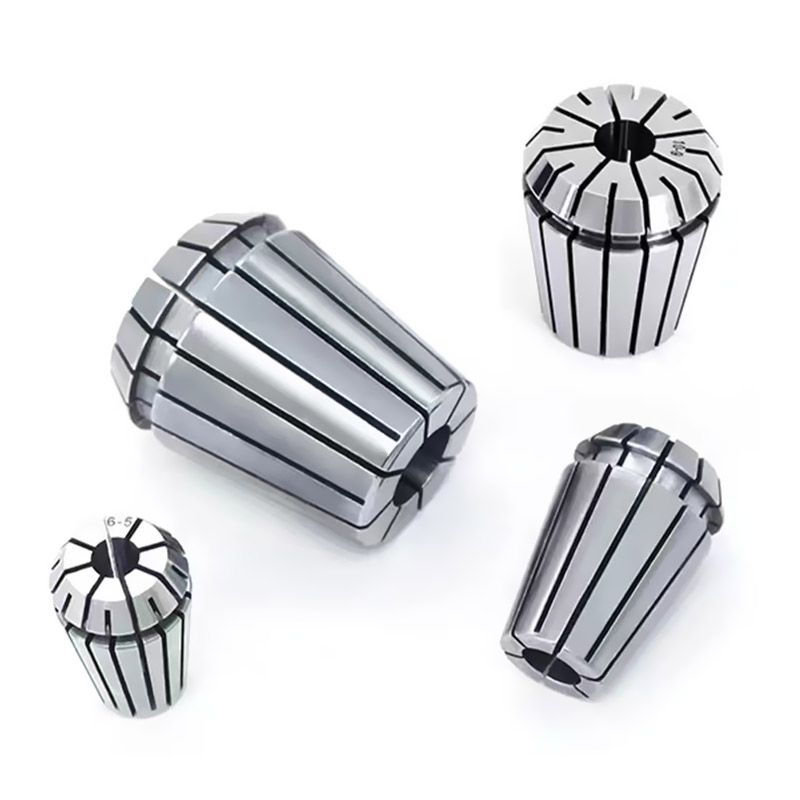

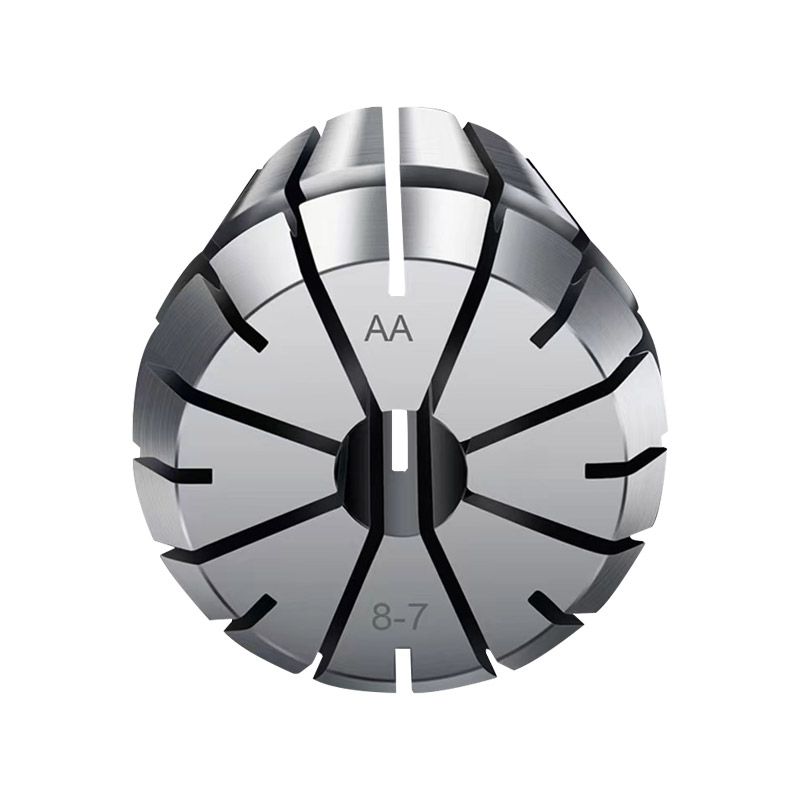

This ER high precision collet is made of 65Mn spring steel with high precision grinding treatment, the accuracy is less than 0.008mm. Through heat treatment and cryogenic treatment, enhance the strength of the collet, both toughness and plasticity, effectively avoid deformation and cracking. Dynamic balance high-precision design, reduce wear, improve concentricity, extend service life. The inner circle and outer cone structure achieve high concentricity, combined with good comprehensive mechanical properties, strong wear resistance and stable quality. Clamping force is large, elastic stability, strong vibration resistance, suitable for CNC, engraving machine and other equipment. Rich specifications, covering ER16, ER20, ER25, ER32, ER40, etc., to meet diverse processing needs.
