General milling of high hard materials
2-blade
High brightness/wear resistance
Aluminum, copper, stainless steel, die steel and other non-ferrous metals

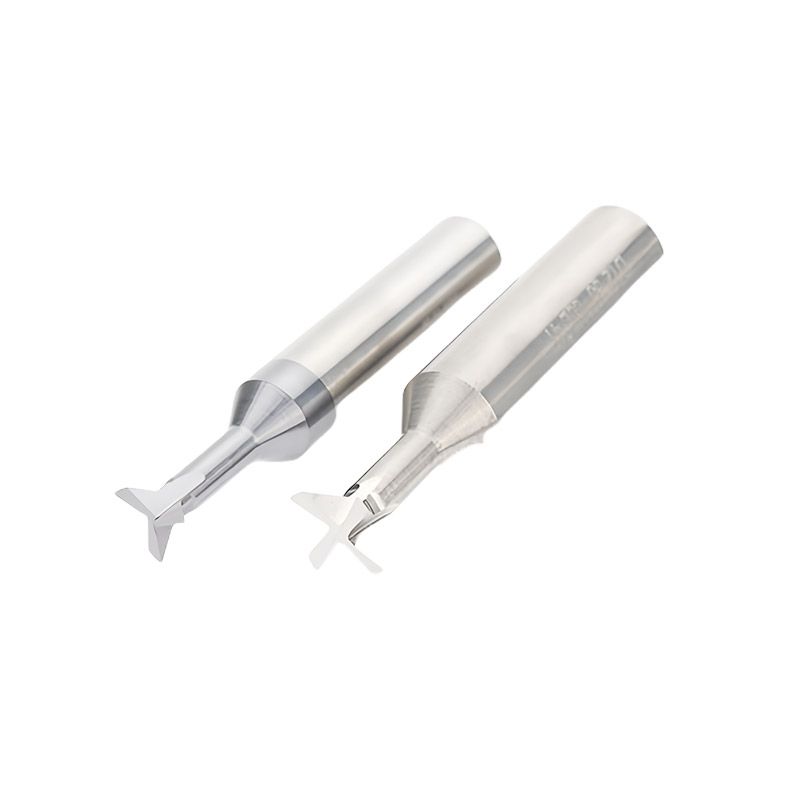

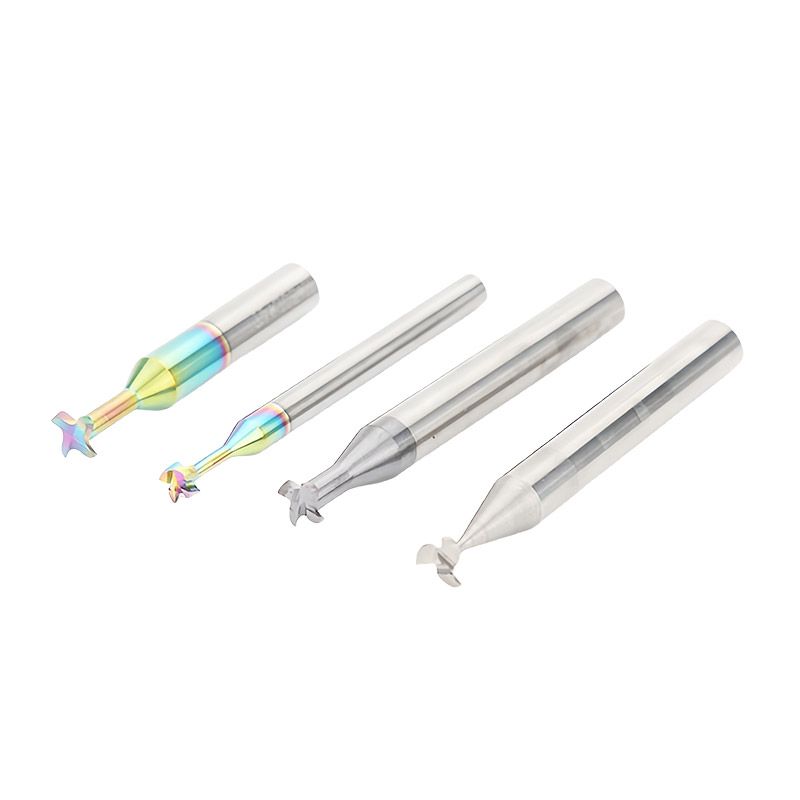

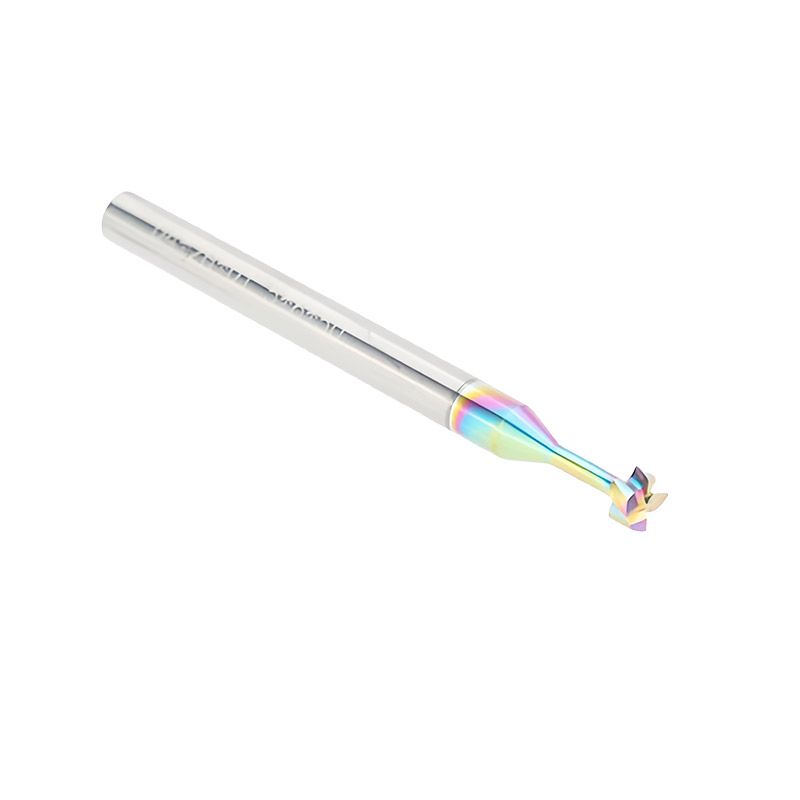

This dovetail milling cutter is mainly "sharp and non-breaking knife", using tungsten steel material with nano coating, with smooth chip removal, wear and durable, sharp edge characteristics. After passivation treatment, the cutting edge is smooth and delicate, effectively improving the service life; The all-grinding edge design ensures sharp cutting and provides protection for tool durability. The nano-coating reduces the number of tool changes, is more wear-resistant than no coating, and improves the service life by 4-5 times. The round handle chamfer design makes the clamping tight and does not slip, and the spiral groove design is increased to promote chip removal and solve the problem of sticking knife. Suitable for aluminum, copper, stainless steel, die steel and other materials processing, suitable for CNC machining center, engraving machine and other equipment. Complete product specifications, sufficient inventory, combined with unique blade design and high quality bar material, to achieve efficient processing.
Tool diameter | Unilateral Angle | Diameter of avoidance | Avoidance length | Handle diameter | Overall length |
D3 | 30°、45°、60° | D1.5 | 4 | D3 | 50 |
D4 | 30°、45°、60° | D2.5 | 6 | D4 | 50 |
D5 | 30°、45°、60° | D2.5 | 6 | D5 | 50 |
D6 | 30°、45°、60° | D3 | 8 | D6 | 60 |
D8 | 30°、45°、60° | D3 | 10 | D8 | 60 |
D12 | 30°、45°、60° | D4 | 10 | D12 | 60 |
D12 | 30°、45°、60° | D4 | 12 | D12 | 60 |
Application: Spare parts and accessories
Application: Spare parts and accessories
Application: Spare parts and accessories
Application: Spare parts and accessories
Application: Spare parts and accessories
Application: Spare parts and accessories
