General milling of high hard materials
2 blades /3 blades
High brightness/wear resistance
Aluminum, copper, stainless steel, die steel and other non-ferrous metals

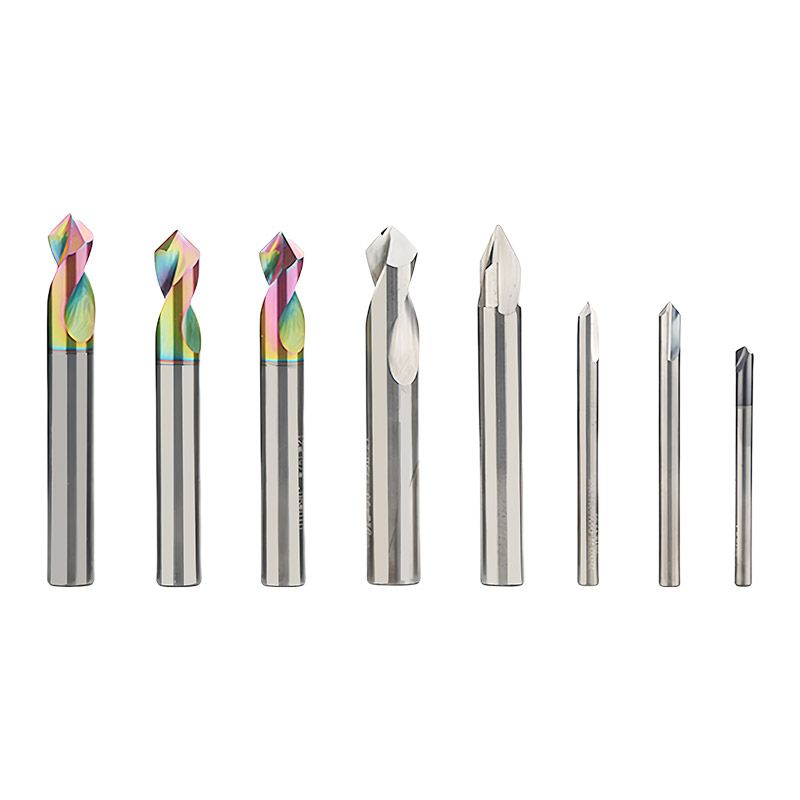

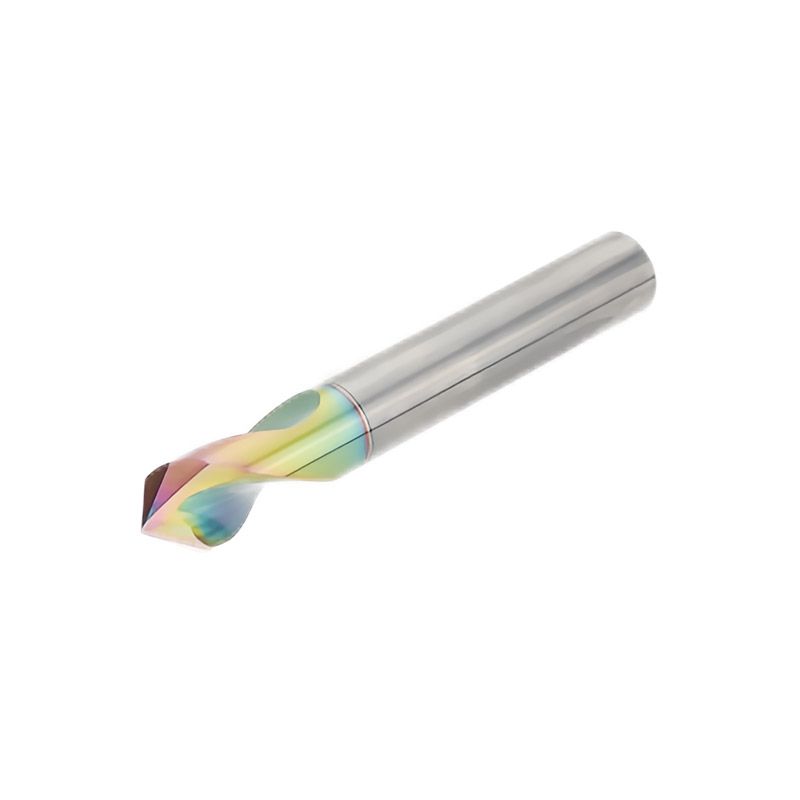

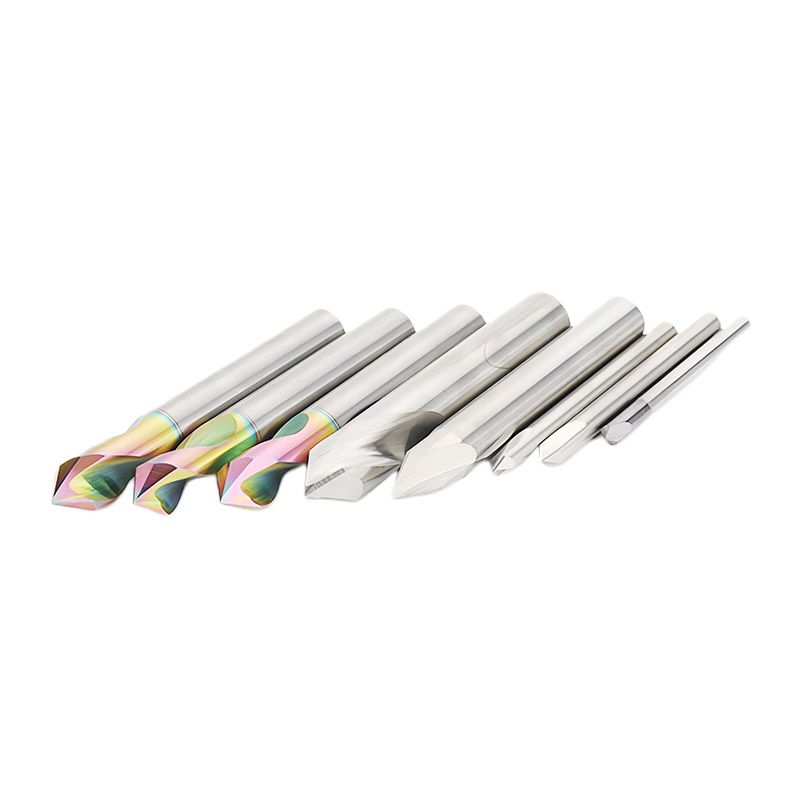

This tungsten steel fixed point drill chamfer knife with fixed point, chamfer dual function, provide 2 edge, 3 edge and spiral, straight groove and other styles, complete specifications and sufficient stock. Tungsten steel material with nano coating, both wear-resistant and durable, sharp edge characteristics, with edge passivation treatment, effectively extend the service life; All grinding edge design ensures sharpness of cutting edge and improves processing efficiency. Round handle chamfered structure ensures stable clamping and easy to use without slipping. Its processing range is wide, suitable for aluminum parts, steel parts, plastics and other materials, suitable for CNC machining center and other high-speed equipment, with high hardness and strong wear resistance, to meet the cutting needs of different metal materials, with instructions for use, to provide clear guidance for operation.
Cutter Diameter | Cutting Edge Length | Angle | Shank Diameter | Total Length |
D1 | 2 | 90° | D4 | 50 |
D1.5 | 3 | 90° | D4 | 50 |
D2 | 4 | 90° | D4 | 50 |
D2.5 | 5 | 90° | D4 | 50 |
D3 | 6 | 90° | D4 | 50 |
D4 | 8 | 90° | D4 | 50 |
D5 | 10 | 90° | D5 | 50 |
D6 | 12 | 90° | D6 | 50 |
D8 | 16 | 90° | D8 | 60 |
D10 | 20 | 90° | D10 | 75 |
D12 | 24 | 90° | D12 | 100 |
D14 | 28 | 90° | D14 | 100 |
D16 | 32 | 90° | D16 | 100 |
D20 | 40 | 90° | D20 | 100 |
D3 | 6 | 90° | D3 | 100 |
D4 | 8 | 90° | D4 | 100 |
D5 | 10 | 90° | D5 | 100 |
D6 | 12 | 90° | D6 | 100 |
D8 | 16 | 90° | D8 | 100 |
D10 | 20 | 90° | D10 | 100 |
D12 | 24 | 90° | D12 | 100 |
D3 Double Head | 6 | 120° | D3 | 100 |
D4 Double Head | 8 | 120° | D4 | 100 |
D5 Double Head | 10 | 120° | D5 | 100 |
D6 Double Head | 12 | 120° | D6 | 100 |
D8 Double Head | 16 | 120° | D8 | 100 |
D3 | 6 | 120° | D4 | 50 |
D4 | 8 | 120° | D4 | 50 |
D5 | 10 | 120° | D5 | 50 |
D6 | 12 | 120° | D6 | 50 |
D8 | 16 | 120° | D8 | 60 |
D10 | 20 | 120° | D10 | 75 |
D12 | 24 | 120° | D12 | 75 |
